Product Description

MRCOOL EZPRO 5th Gen DIY Mini Split Systems

Overview

The MRCOOL EZPRO 5th Generation Mini Split Systems provide energy efficient climate control with easy DIY installation. Available in 9000, 12000, 18000, and 24000 BTU capacities, these systems come pre-charged with R 454B refrigerant and include quick connect line sets for straightforward setup. They are suited for various spaces including bedrooms, garages, offices, and living areas.

Benefits

  • Pre charged line sets allow installation without vacuum pumps, gauges, or licensed technicians
  • Voltage options support 115V for 9000 and 12000 BTU models, 230V for 18000 and 24000 BTU models
  • Uses eco friendly R 454B refrigerant with lower global warming potential and EPA compliance
  • Whisper quiet inverter technology offers smooth and silent operation with variable speed performance

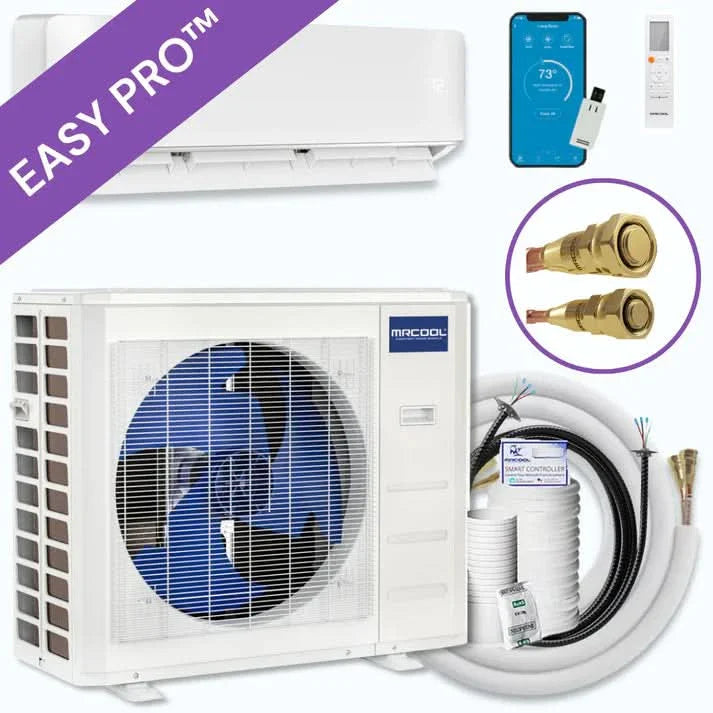

  • Complete system includes indoor air handler, outdoor condenser, remote, 16 foot line set, and control cable
  • Factory backed warranty when purchased from MRCOOL DIY Direct

Features

  • Comes with 16 foot factory pre charged quick connect DIY line set
  • Optional extended line sets available in 32, 41, 51, and 66 foot lengths with leak proof couplers and longer control wires
  • Coupler technology is trusted and nearly leak proof used across MRCOOL DIY systems
  • Control wire extensions provided and can be trimmed or coiled as needed
  • Wireless remote and smart controller included with built in WiFi control via the MRCOOL SmartHVAC app
  • Indoor air handler is wall mounted, quiet, with washable filters and auto swing
  • Outdoor condenser features inverter driven compressor with corrosion resistant coating

Specifications

  • Model: 9K EZPRO | Voltage: 115V | Capacity: 9000 BTU | Room Size: Up to 400 square feet | Line Set: 16 feet | Refrigerant: R 454B | SEER: 21 | HSPF: 10.5 | Sound Level: 23 dB(A)
  • Model: 12K EZPRO | Voltage: 115V | Capacity: 12000 BTU | Room Size: Up to 550 square feet | Line Set: 16 feet | Refrigerant: R 454B | SEER: 21 | HSPF: 10.5 | Sound Level: 23 dB(A)
  • Model: 18K EZPRO | Voltage: 230V | Capacity: 18000 BTU | Room Size: Up to 750 square feet | Line Set: 16 feet | Refrigerant: R 454B | SEER: 20.5 | HSPF: 10.3 | Sound Level: 25 dB(A)
  • Model: 24K EZPRO | Voltage: 230V | Capacity: 24000 BTU | Room Size: Up to 1000 square feet | Line Set: 16 feet | Refrigerant: R 454B | SEER: 20.5 | HSPF: 10.3 | Sound Level: 26 dB(A)
