Product Description

MRCOOL 5th Generation Advantage 24,000 BTU 230V Ductless Mini Split Heat Pump R454B

Overview

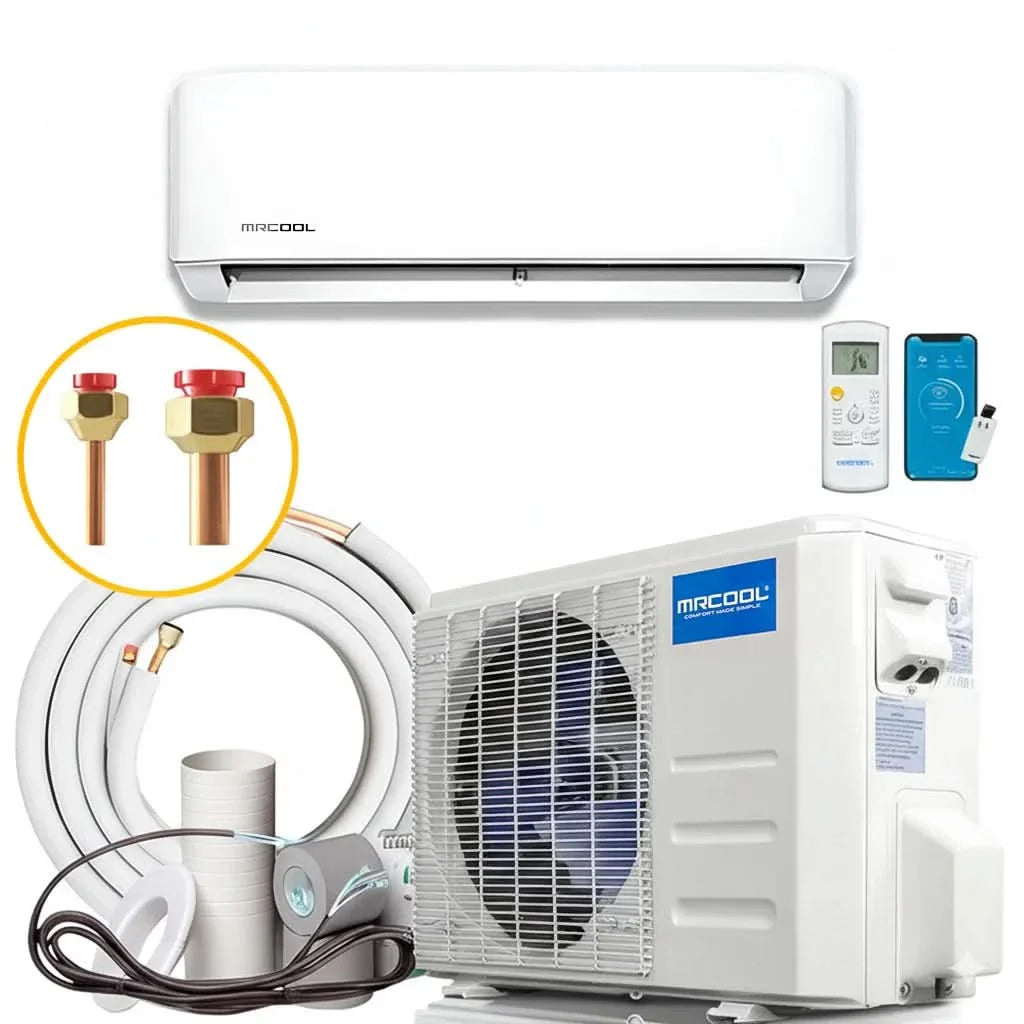

The MRCOOL 5th Generation Advantage 24,000 BTU Ductless Mini Split Heat Pump (230V) is designed for spaces up to 1,200 square feet. It uses R454B refrigerant which provides improved energy efficiency, lower environmental impact, and meets current refrigerant regulations due to its reduced Global Warming Potential. This unit offers heating and cooling without ductwork and includes a wall-mounted air handler with built-in WiFi for control via the SmartHVAC app.

Benefits

  • Suitable for rooms up to 1,200 square feet
  • Uses eco-friendly R454B refrigerant
  • Quiet operation for minimal disturbance
  • WiFi enabled for remote control with smartphone app
  • Compact wall-mounted design
  • Reliable heating and cooling without ductwork

Features

  • 24,000 BTU capacity
  • 230V single phase power supply
  • Built-in WiFi connectivity
  • Quiet air handler with multiple fan speeds
  • Reusable air filter
  • Compatible with iOS and Android devices
  • Includes remote control
  • Overload protection
  • Requires professional installation
  • Extended warranty options available upon registration

Specifications

  • Brand: MRCOOL
  • Series: Advantage 5th Generation
  • Model Number (Condenser): A-24-HP-C-230D-O
  • Model Number (Air Handler): A-24-HP-WMAH-230D-O
  • Cooling and Heating Capacity: 24,000 BTU
  • Voltage: 208 to 230 Volts
  • Phase: Single
  • Cycle: 60 Hz
  • Refrigerant: R454B
  • Maximum Line Set Length: 164 feet
  • Compressor Type: Rotary
  • Noise Level: Condenser 59.5 dBA, Air Handler 21.5 to 54 dBA
  • Air Handler Fan Speeds: 5
  • Air Handler CFM: 329.6 to 729.9
  • Filter Type: Reusable
  • Warranty: 2 Year parts, 1 Year compressor, 1 Year remote, Extended Limited Lifetime with registration

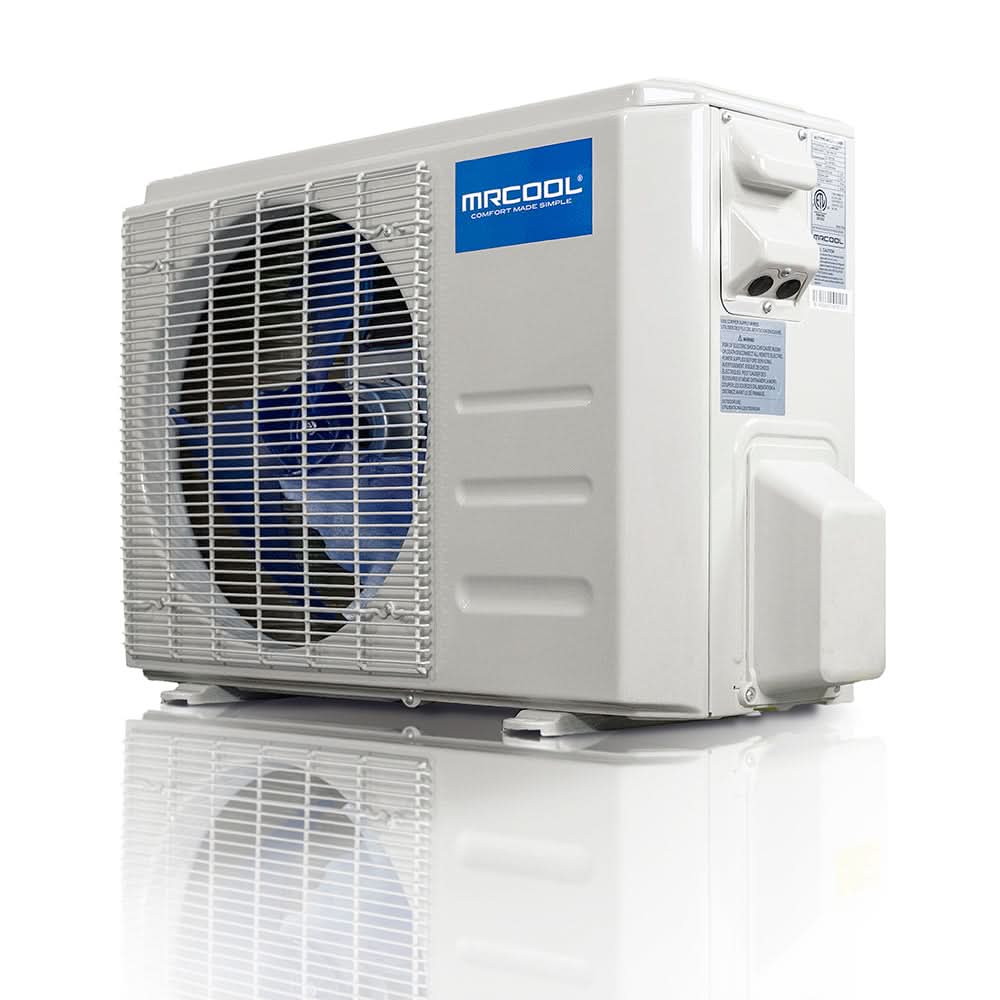

  • Dimensions Condenser (WxHxD in inches): 35.04 x 26.5 x 13.46
  • Weight Condenser: 94.58 lbs net
  • Dimensions Air Handler (WxHxD in inches): 42.52 x 13.19 x 8.9
  • Weight Air Handler: 30.64 lbs net
  • UL, CSA, ETL, and AHRI certified
  • App Compatibility: Yes; supports iOS and Android
  • Contains chemicals and compressed gases as per regulations
