Product Description

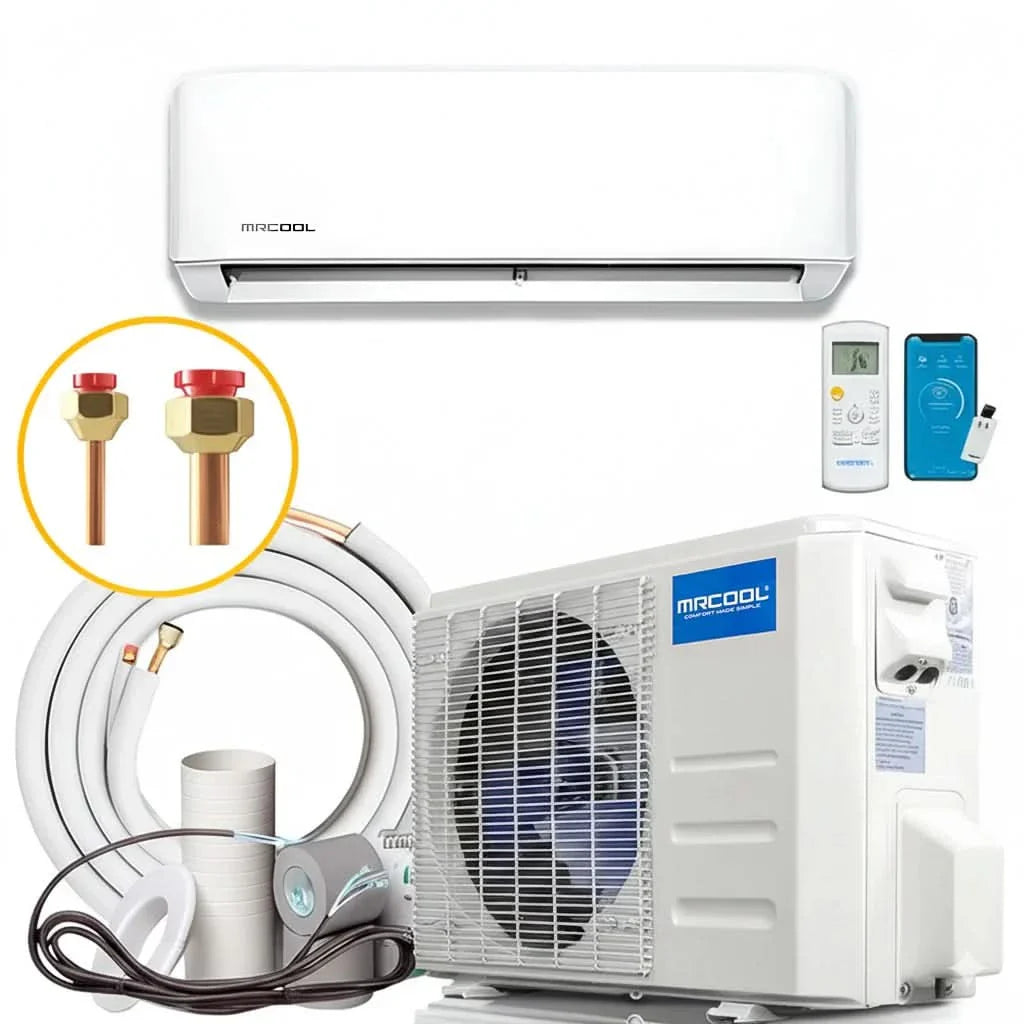

MRCOOL 5th Gen Advantage 9000 BTU 115V Ductless Mini Split Heat Pump R-454B Refrigerant

Overview

The MRCOOL 5th Generation Advantage 9000 BTU ductless mini split heat pump operates on 115V power and uses the eco-friendly R-454B refrigerant. This refrigerant delivers improved energy efficiency, lower greenhouse gas emissions, and a reduced Global Warming Potential compared to previous refrigerants. The system is designed for quiet and reliable heating and cooling without requiring ductwork. The slim indoor air handler is space-saving and suitable for year-round comfort in small living areas, bedrooms, offices, or additional rooms.

Benefits

  • Quiet operation for comfortable use without noise distractions
  • Compact indoor air handler fits easily in rooms with limited space
  • Eco-friendly refrigerant reduces environmental impact
  • Wi-Fi enabled for remote temperature control and scheduling
  • Provides efficient heating and cooling for rooms up to 400 square feet
  • Requires professional installation to ensure proper operation and warranty coverage

Features

  • 9000 BTU cooling and 10000 BTU heating capacity
  • Operates on standard 115V single phase power supply
  • Uses R-454B refrigerant for better energy efficiency and lower emissions
  • Built-in Wi-Fi for control via SmartHVAC app on iOS and Android devices
  • Five-speed indoor air handler with reusable filter
  • Compatible with app remote control and includes handheld remote
  • Energy Star certified and AHRI certified
  • Maximum line set length supports up to 82 feet

Specifications

  • Brand: MRCOOL
  • Series: Advantage 5th Gen

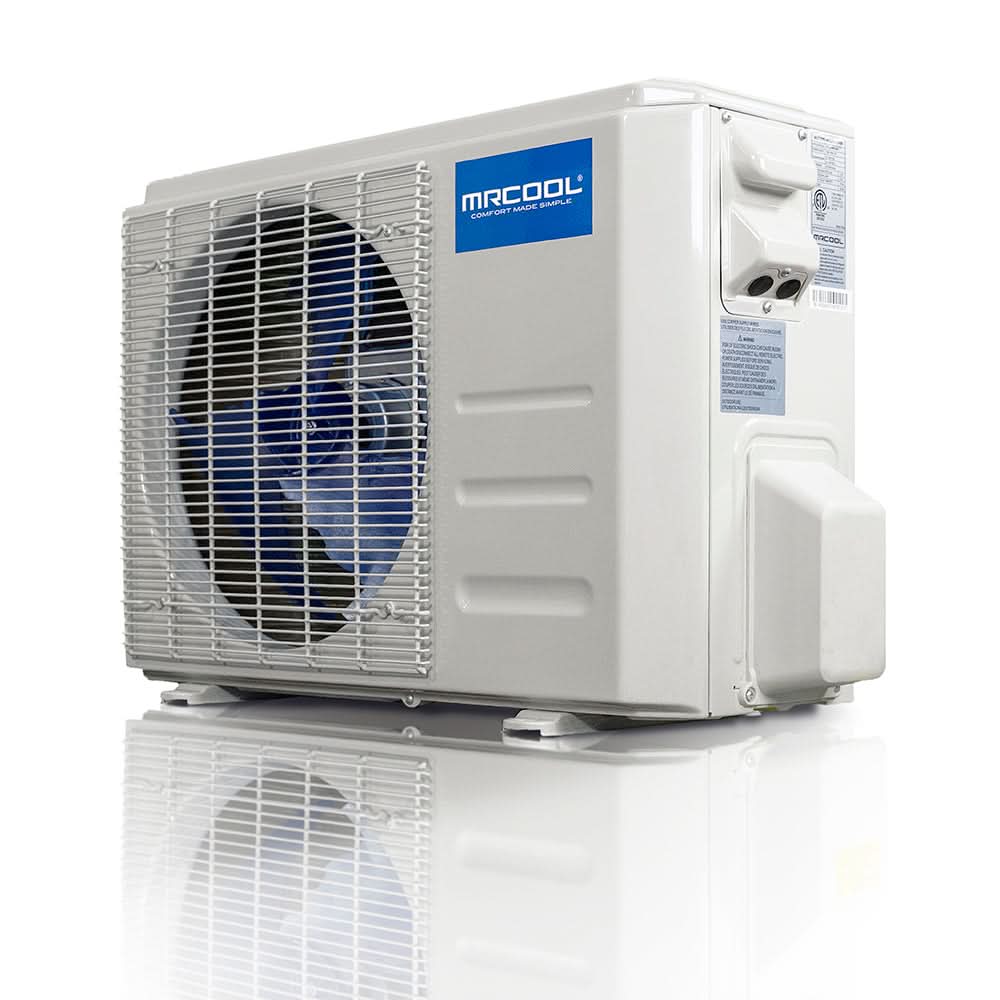

  • Model: A-09-HP-C-115D-O (Condenser), A-09-HP-WMAH-115D-O (Air Handler)
  • SEER2 Rating: 21.5
  • EER2 Rating: 12.5
  • HSPF2-4 Rating: 9
  • HSPF2-5 Rating: 7
  • Tonnage: 0.75
  • Voltage: 115V, Single Phase, 60 Hz
  • Max Fuse Breaker: 20A (Condenser), 15A (Air Handler)
  • Minimum Circuit Ampacity: 18A (Condenser), 3A (Air Handler)
  • Cooling Capacity: 9000 BTU
  • Heating Capacity: 10000 BTU
  • Refrigerant Volume: 21.52 ounces R-454B
  • Compressor Type: Rotary
  • Decibel Rating: 52.5 dBA (Condenser), 33.5 dBA average / 18 dBA low / 43 dBA high (Air Handler)
  • CFM: 282.5 / 235.4 / 206.0 / 164.8 / 117.7 (Air Handler)
  • Filter Type: Reusable
  • Mount Type: Wall (Air Handler)
  • Color: White (Air Handler)
  • Max Line Set Length: 82 feet
  • Liquid Line Size: 1/4 inch
  • Suction Line Size: 3/8 inch
  • App Compatibility: Yes, works with iOS and Android
  • UL, CSA, ETL Listed
  • Energy Star and AHRI Certified
  • Warranty: 2 Year Parts, 1 Year Compressor, 1 Year Remote Control, with Limited Lifetime coverage available via MRCOOL Care Program
  • Net Weight: 56.66 lbs (Condenser), 17.42 lbs (Air Handler)
  • Net Dimensions (Inches): Condenser 30.12 W x 21.85 H x 11.93 D; Air Handler 28.43 W x 11.42 H x 7.36 D
  • Gross Weight: 62.17 lbs (Condenser), 22.93 lbs (Air Handler)
  • Gross Dimensions (Inches): Condenser 34.92 W x 24.02 H x 13.27 D; Air Handler 31.1 W x 14.76 H x 10.63 D
