Product Description

MRCOOL DIY Hyper Heat 12K Ceiling Cassette Mini Split Bundle

Overview

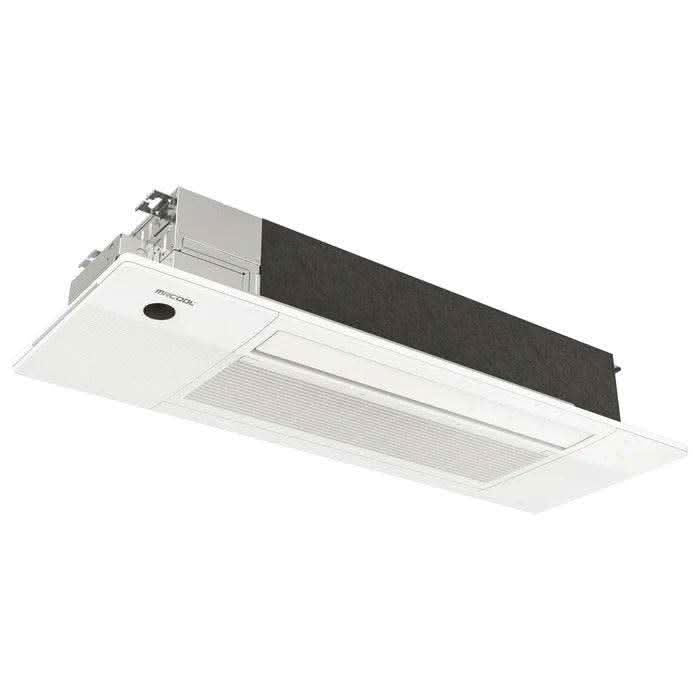

The MRCOOL DIY Hyper Heat 12K Ceiling Cassette Bundle provides cold-climate heating and cooling with professional HVAC performance and simple installation. This mini split system offers efficient operation down to 22 degrees below zero Fahrenheit and features a flush-mount ceiling cassette that keeps walls clear.

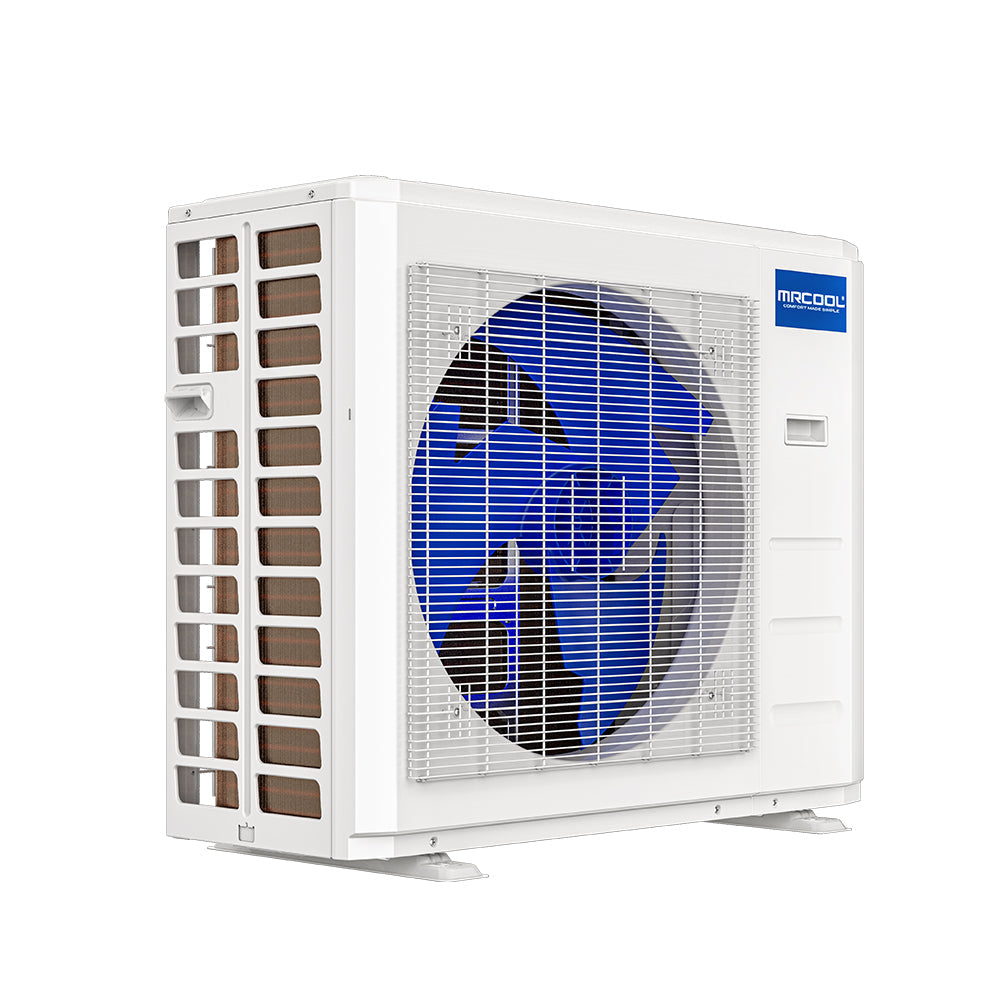

The bundle includes the 12,000 BTU Hyper Heat condenser model DIYHH120HPC230D25O, the OuttaSight ceiling cassette model DIYCASSETTE12HP230D25O, and a pre-charged DIY QuickConnect line set. No vacuum pump, gauges, or refrigerant handling is necessary.

Benefits

  • Heating and cooling for spaces up to 550 square feet
  • Reliable operation in temperatures as low as 22 degrees below zero Fahrenheit
  • Flush-mounted ceiling cassette installs between 16 inch joists without needing a wall unit
  • Pre-charged QuickConnect line set enables easy installation without specialized tools
  • Built-in condensate pump eliminates the need for gravity drain
  • Quiet operation ranging from 24 to 41 decibels
  • Multiple control options including wireless remote, mobile app, and voice assistants
  • Corrosion-resistant Gold Fin coating on outdoor components

Features

  • 12,000 BTU cooling and heating capacity
  • High efficiency with 23.5 SEER2 and 10 HSPF2 ratings
  • System type: 12K DIY Hyper Heat Ceiling Cassette Mini Split
  • Heating operating range from 22 degrees below zero to 122 degrees Fahrenheit
  • Factory pre-charged R-454B refrigerant in QuickConnect line set
  • Outdoor unit voltage: 208/230 volts, single phase
  • Indoor unit features integrated condensate pump
  • Control via SmartHVAC app for iOS and Android, Amazon Alexa, and Google Assistant
  • Programmable timer, auto mode, sleep mode, and dehumidification modes available

Specifications

  • Cooling capacity: 12,000 BTU
  • Heating capacity: 12,000 BTU
  • SEER2 rating: 23.5
  • EER2 rating: 12.8
  • HSPF2 rating: 10
  • Maximum coverage area: 550 square feet
  • Sound level: 24 to 41 decibels
  • Outdoor unit dimensions: 31.69 inches wide, 21.81 inches high, 12.99 inches deep
  • Outdoor unit weight: 72.31 pounds
  • Ceiling cassette dimensions: 50.31 inches wide, 8.98 inches high, 13.19 inches deep
  • Ceiling cassette weight: 45 pounds
  • Electrical requirements outdoor: 208/230 volts, 15 amp circuit
  • Electrical requirements indoor: 208/230 volts, 3 amp minimum circuit ampacity
  • Refrigerant: R-454B factory pre-charged
  • Mounting: Fits between 16 inch ceiling joists for ceiling-only installation
