Product Description

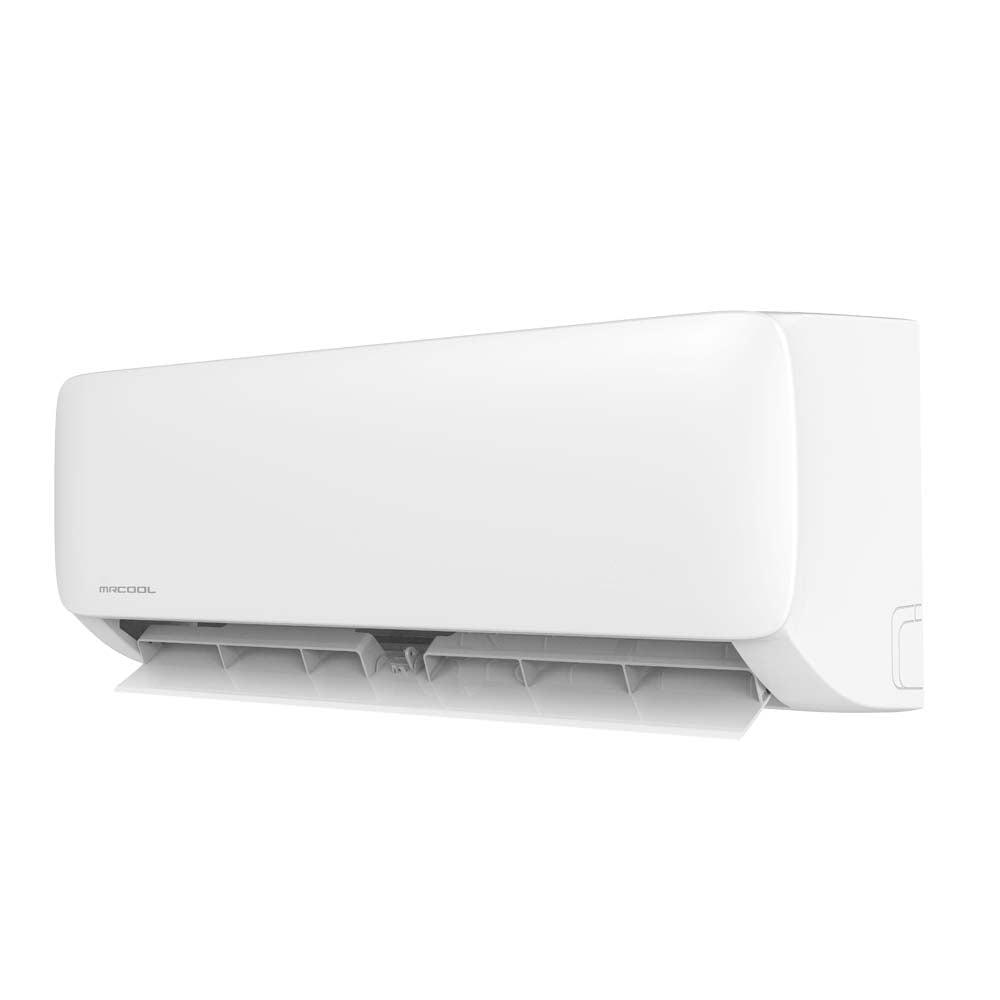

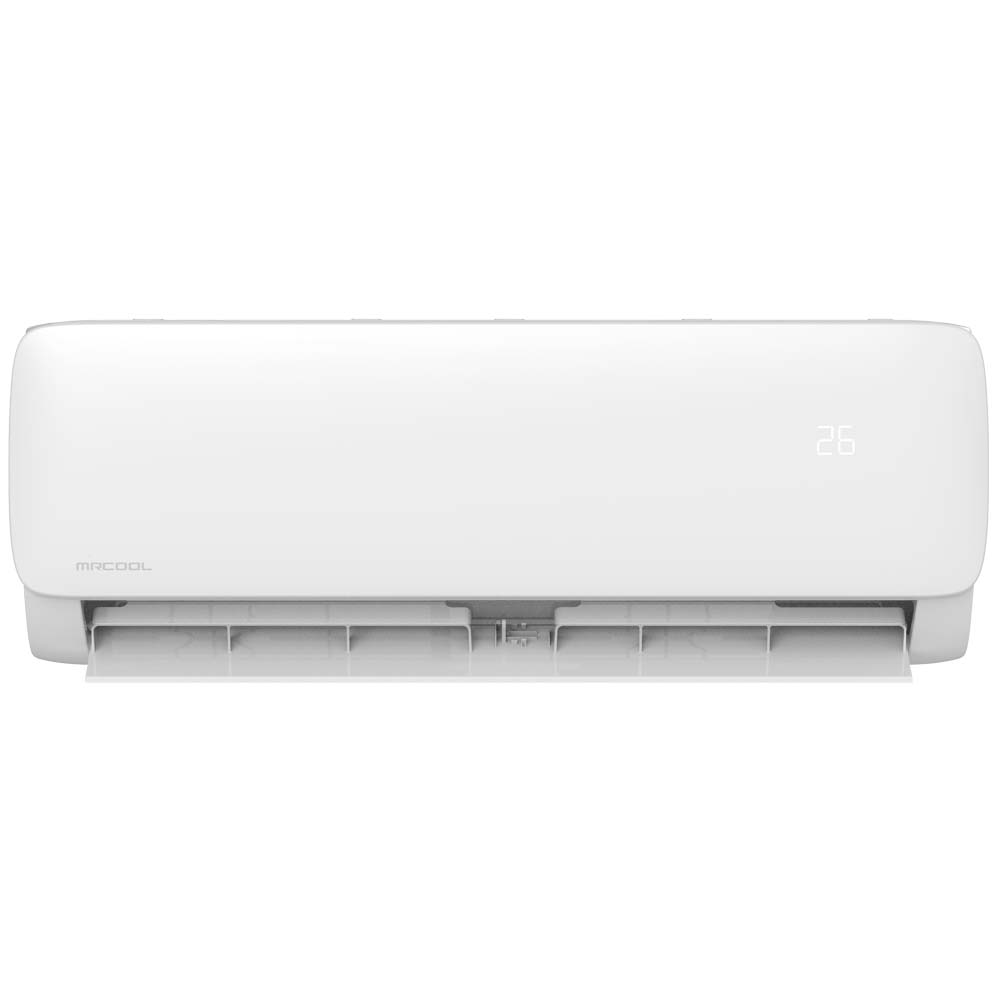

MRCOOL 5th Generation DIY Mini-Split Air Handler Series 230v

Overview

The MRCOOL 5th Generation DIY Mini-Split Air Handler Series provides an energy-efficient and user-friendly solution for controlling the climate in individual rooms. It requires no HVAC technician, vacuum pump, or specialized tools for installation.

Available in models from 6,000 to 36,000 BTUs, this series can heat and cool spaces ranging from 150 to 1,500 square feet. Each unit connects with a 25-foot DIY QuickConnect line set sold separately, which comes pre-charged with R-454B refrigerant that is environmentally friendly and efficient. This design removes the need for system evacuation, reducing installation time and cost.

The included DIYPRO cable replaces traditional electrical conduit to provide better protection from weather, animals, and wear, while simplifying electrical installation.

Benefits

  • Simple installation without professional HVAC service or special tools
  • Energy-efficient operation with eco-friendly refrigerant
  • Flexible control options including wireless remote, mobile app, and voice commands
  • Improved durability with protection against corrosion and outdoor elements
  • Reliable performance backed by comprehensive warranties

Features

  • Wireless remote for traditional control
  • SmartHVAC app available for iOS and Android devices
  • Voice command compatibility with Amazon Alexa and Google Assistant
  • Follow Me feature adjusts airflow based on remote location for consistent comfort
  • Dry Mode functions as a dehumidifier to remove excess moisture
  • Gold Fin Condenser coating provides superior corrosion resistance, especially in coastal environments

Specifications

  • Cooling and heating capacity range: 6,000 to 36,000 BTUs
  • Coverage area: 150 to 1,500 square feet
  • 25-foot QuickConnect line set (sold separately) pre-charged with R-454B refrigerant
  • DIYPRO electrical cable included for enhanced protection and easy installation
  • Limited Lifetime Warranty with MRCOOL Care Program enrollment
  • 7-Year Compressor Warranty
  • 5-Year Parts Warranty
